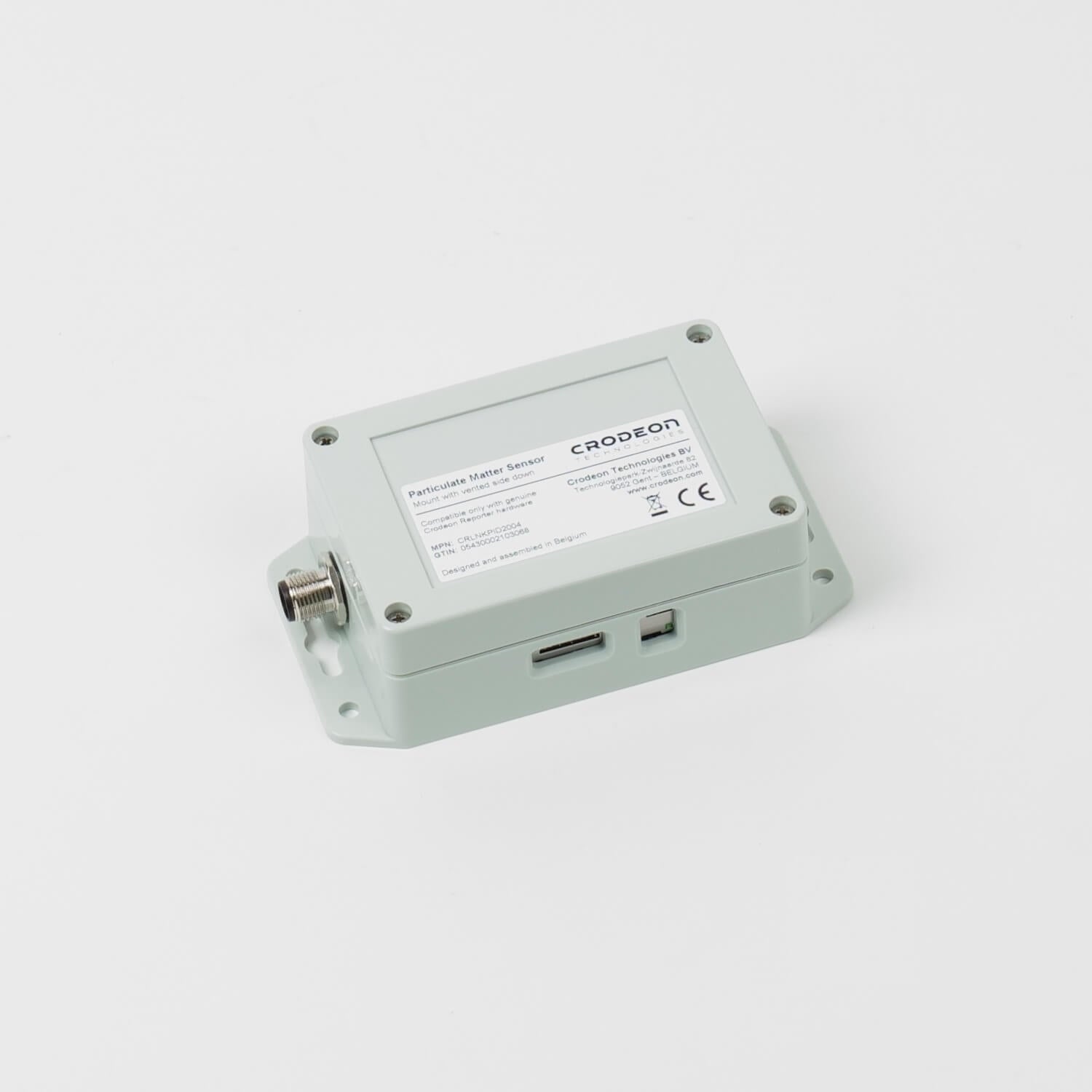

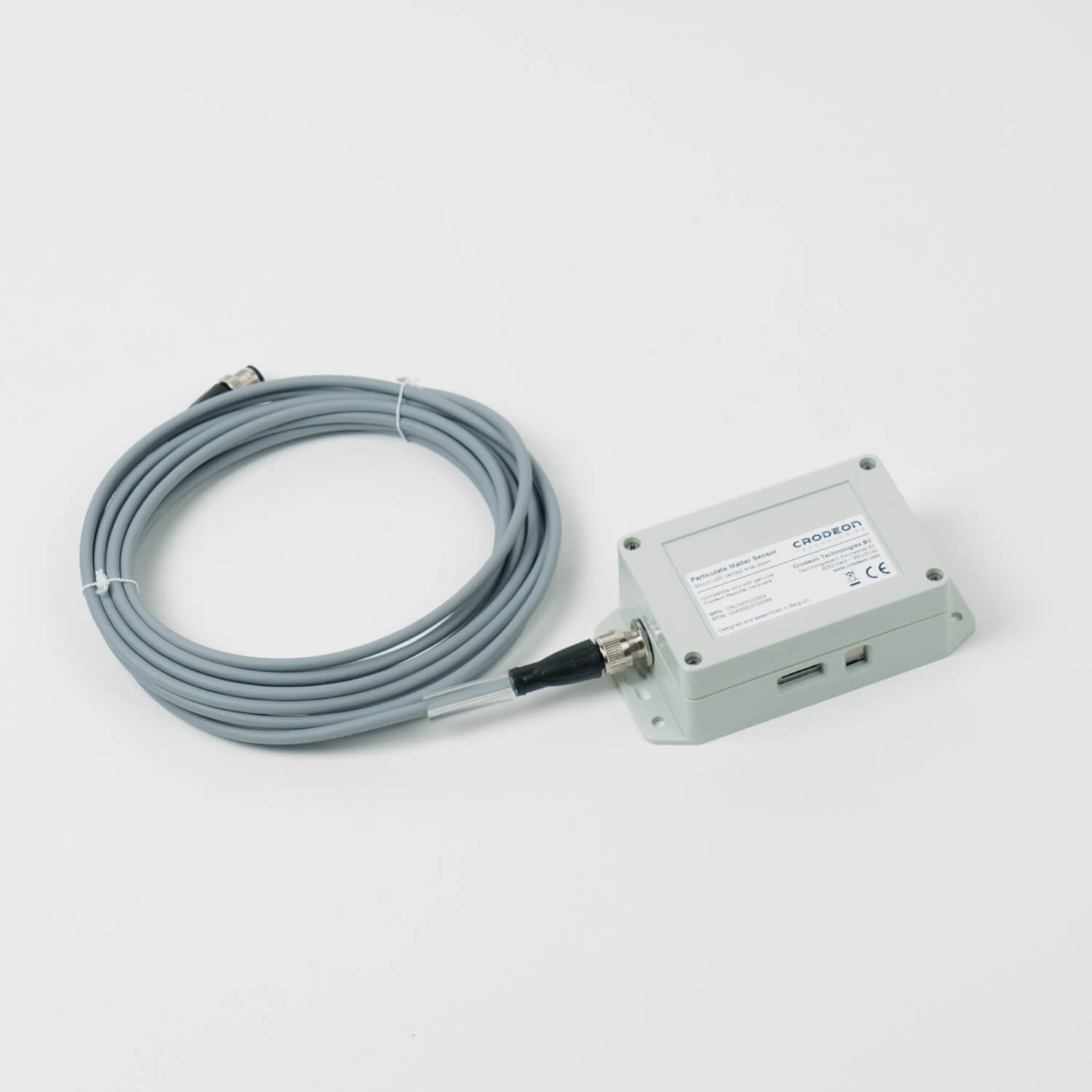

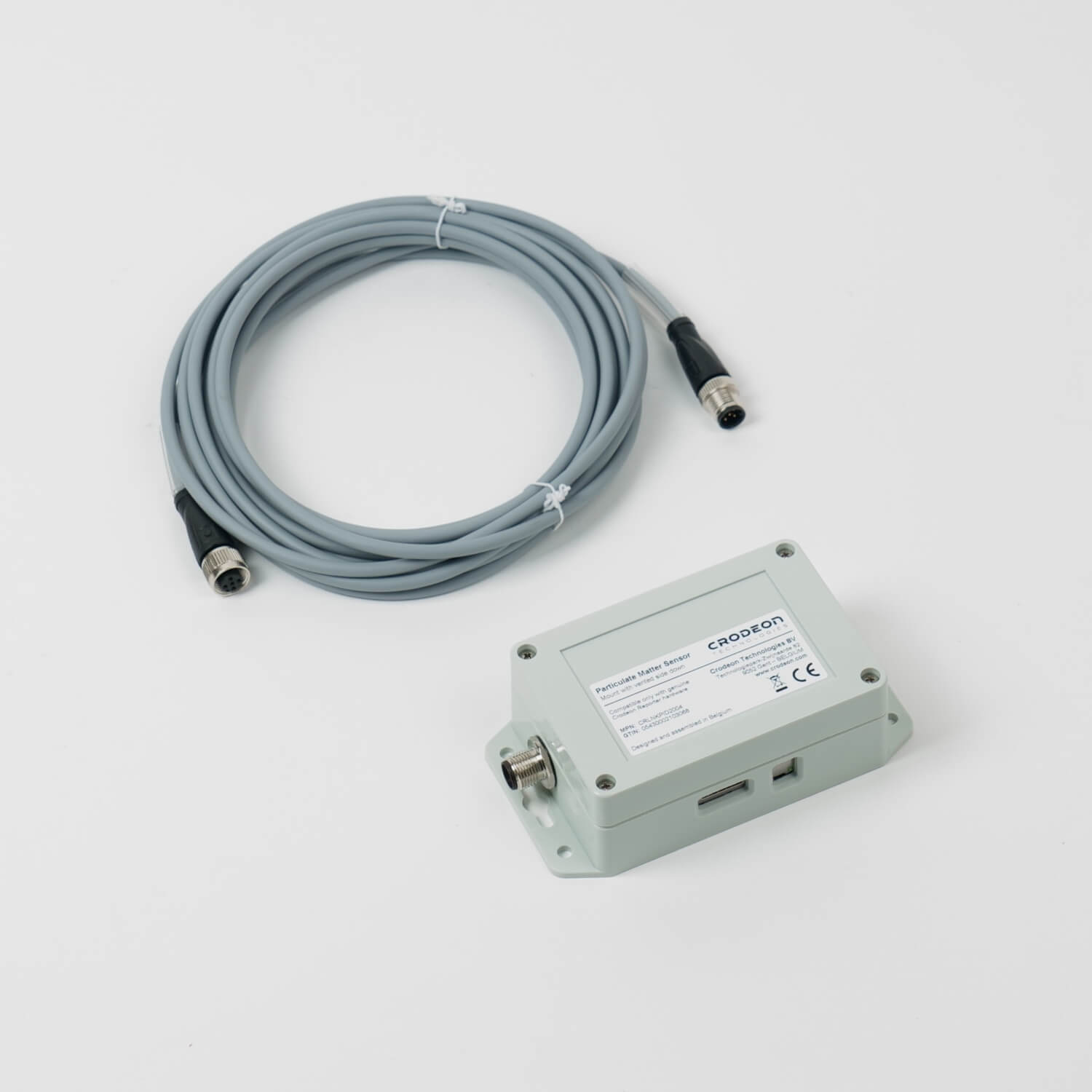

This particulate matter (PM) sensor is based on the SPS30 module by Sensirion AG. Crodeon ships this sensor with a 5m M12 extension cord for direct compatibility with your Crodeon Reporter.
This MCERTS-certified sensor marks a new technological breakthrough in optical PM sensors. Its measurement principle is based on laser scattering and makes use of Sensirion's innovative contamination-resistance technology. This technology, together with high-quality and long-lasting components, enables precise measurements from the device's first operation and throughout its lifetime of more than ten years while operating continuously for 24 hours/day.
Particulate Matter, abbreviated as PM, is a mixture of airborne solid particles and liquid droplets that can be inhaled and may cause serious health problems. PM includes particles with different characteristics (i.e. shape, optical properties, size and composition) but it is most commonly divided into sub-categories based on the particle size. The SPS30 module measures PM1.0, PM2.5, PM4.0 and PM10. Visit the website of Sensirion for more information about measuring Particulate Matter.
The sensor must be mounted with the vented side facing down. Crodeon allows extending this sensor to a length of 30m using standard M12 extension cords.
| Mass concentration range | 1 to 1000 μg/m³ |
| Mass concentration size range (PM1.0) | 0.3 - 1.0 µm |
| Mass concentration size range (PM2.5) | 0.3 - 2.5 µm |
| Mass concentration size range (PM4.0) | 0.3 - 4.0 µm |
| Mass concentration size range (PM10) | 0.3 - 10 µm |
| Mass concentration resolution | 1 μg/m³ |
| Mass concentration precision | see datasheet |
| Operating temperature range | -10 to +60 °C |
| Acoustic emission level (0.2m) | 25 dB(A) max. |
| Height | 41 mm |
| Width | 131 mm |
| Depth | 71 mm |
| Cable length | 5 m |
Tous les capteurs Crodeon sont compatibles avec votre Reporter et sont prêts à l'emploi. Parcourez notre boutique et sélectionnez les capteurs, accessoires et Reporters de votre choix, ou choisissez l'un des kits précomposés correspondant à vos besoins.
Reporter® nécessite un abonnement de 180 €/an pour fonctionner. Ajoutez cet abonnement à votre panier lors du paiement. L'abonnement couvre des éléments tels que la connectivité et l'utilisation du tableau de bord Crodeon. Les kits incluent déjà un abonnement d'un an. Contactez-nous si vous avez uniquement besoin des capteurs sans connectivité.
