Size

DN80

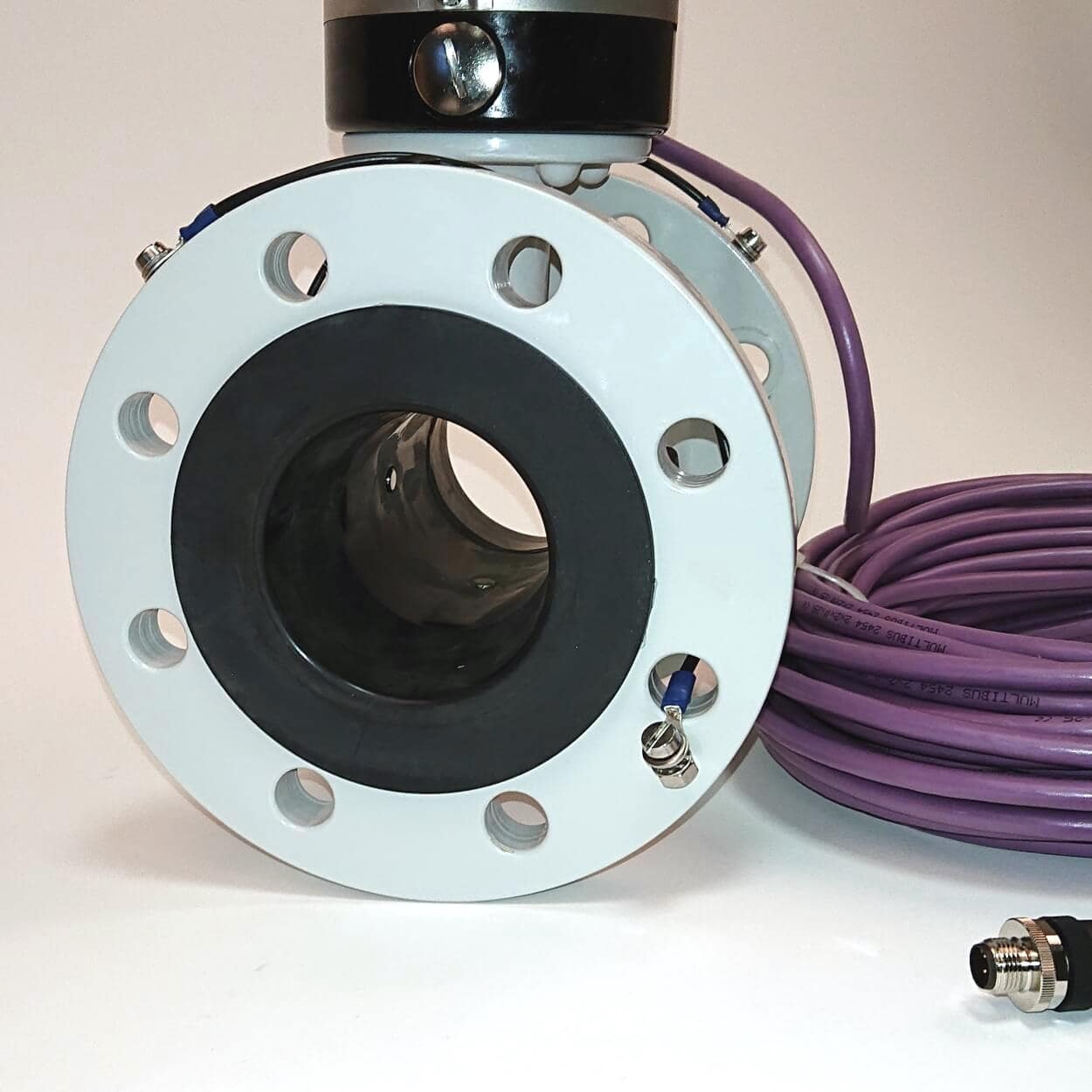

Measure your water projects with the SITRANS FM MAG 8000 by Siemens, now compatible with Reporter! Electromagnetic flow meters are extremely suitable for measuring conductive liquids. Due to the lack of moving parts inside of the measuring mechanism, even liquids that contain bubbles and/or solids can be measured.

The sensor gets connected to Reporter (our sensor module) through a robust cable with sensor adapter and M12 connector end. The M12 connectors can easily be plugged into Reporter, to allow for easy remote monitoring.

Crodeon Cloud

All measurement data is sent to the Crodeon Dashboard (cloud platform), where live and historical measurements are available. Reporter comes with a built-in sim card that allows for cellular data connection using the 2G or 4G network.

The Crodeon Dashboard is where all measurement settings can be adjusted to your liking. Alarm notifications and alarm thresholds can also be set here. When an alarm threshold is exceeded you will receive an alarm through your smartphone or email. Receive an alarm notification when water flow halts, so you know something is amiss in your pipeline.

Electromagnetic flow meter with API

All data can be automatically forwarded to your own platform through our rest API.

Mobile measuring

This electromagnetic flow meter uses an internal battery pack, eliminating the need for a power source close to your water project. The sensor cable can be extended up to 30m. Don't let distance or location limit the measuring and monitoring of your water project!

Siemens' SITRANS FM MAG 8000, now plug & play for your professional water projects such as dewatering at construction sites, monitoring wastewater, measuring irrigation water, and more.

Nominal size	From DN 25 – 1200 (1" to 48")
Display	Display with touch keypad
Accuracy	0.2% ± 2mm/s and 0.4% ± 2mm/s
Power supply	Internal battery pack
Operating pressure	Max.40 bar (Max.580 psi)
Ambient temperature	From -20 to 60 °C (-4 to 140 °F)
Liner	EPDM
Electrodes	Hastelloy C 276
Enclosure	IP68 (NEMA 6P)
Material	Transmitter: Stainless steel top housing (AISI 316) and coated brass bottom. Sensor: Carbon steel
Approvals	WRAS, KTW, DVGW 270, ACS, Belgaqua, NSF/ANSI Standard 61, MID (EU), OIML R49, MCERTS Sira Certificate No. MC080137/00 NMI 10

Download datasheet and more specific sensor operating instructions.

Learn more about the difference between electromagnetic and ultrasonic flow meters.
